    Changzhou Make AL/ALM...F2D2/F4D2/F7D7 series one way roller overrunning clutch

    Ask Lasest Price
    Brand Name : R&B
    Model Number : AL50F7D7
    Certification : SGS
    Price : USD100.00-150.00/pcs
    Supply Ability : 100000pcs/per month
    • Product Details
    • Company Profile

    Changzhou Make AL/ALM...F2D2/F4D2/F7D7 series one way roller overrunning clutch

    AL..F2D2 F4D2 Series Roller Freewheel One Way Clutch Bearing

    Product Description

    AL...F2D2 F4D2 Series

    Data Sheet

    ItemAL...F2D2 AL...F4D2
    MaterialGCr15
    Outer Diameter(F2D2)62-610 mm
    Outer Diameter(F4D2)42-480 mm
    Inner Diameter12-250 mm
    Weight0.9-680 kg
    Torque55-287500 Nm
    Drag Torque11-6500 Ncm
    PortShanghai;Ningbo
    Delivery Time10-20 days

    Feature

    Types AL..F2D2/F4D2 are roller type freewheels, self contained, sealed and bearing supported, using two 160.. series bearings. Units are delivered oil lubricated.

    Primarily used as overrunning or indexing clutches, the cover combination is chosen according to the type of drive, as shown overleaf. D2 cover is used to close the unit. It is equipped with two screws for oil filling, drain and level. The shaft seal is a V-ring type. Cover and seal have been designed to be oil proof with minimum drag torque.

    Different Sizes Of AL..F2D2 F4D2 Series For Your ReferenceAL..F2D2 F4D2 Series Roller Freewheel One Way Clutch Bearing

    TypeSizeOverrunning speedsWeightDrag Torque
    dH7TKN1Nimax2)Namax3)Dn7L1D5D3zOD4h7tL5KsfTR
    (mm)(Nm )(min-1)(min-1)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(kg)(Ncm)

    AL..F2D2

    AL..F4D2

    1255250072006242857235.5423440.510.30.50.911
    15125190065006852927835.5473540.510.30.81.315
    20181160056007557988545.5553590.510.80.81.718
    2528814004500906011810466.6683620.510.512.636
    30500130041001006812811466.6753700.511.313.548
    35725110038001107413812466.6803.576111.814.560
    40102595034001258616014269903.588113.81.56.984
    45112590032001308616514689953.588113.81.57.194
    50212585028001509218516689110494112.81.510.1158
    552625720265016010420418281111541061.516.8213.1150
    6035006802450170114214192101112541161.516.3215.6160
    7057505802150190134234212101114041361.517.82.520.4360
    808500480190021014425423210111604146.31.520.32.526.7360
    9014500380170023015827825410141804.51611.520339680
    100200003501450270182335305101821051842.528366880
    120312502501250310202375345121824052042.528.53911200
    15070000180980400246485445122231052492.53141861350
    2001750001207505203266255651826400532834054254200
    2502875001006206103967406802033480539834556806500

    ALM..F2D2

    ALM..F4D2

    2538811002800906011810446.6683620.510.512.741
    30588100025001006812811466.6753700.511.3136.6564
    3583890024001107413812466.6803.576111.84.776

    1) Tmax = 2 × TKN

    2) Inner race overruns

    3) Outer race overruns


    MOUNTING EXAMPLE

    AL..F2D2 F4D2 Series Roller Freewheel One Way Clutch Bearing

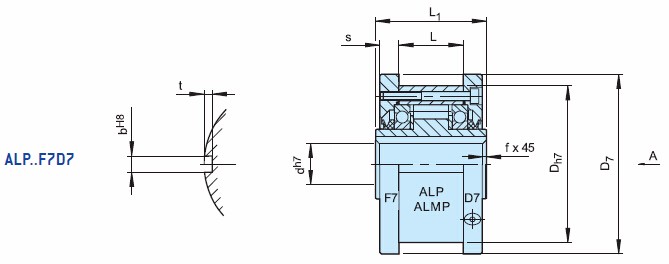

    Structure of ALP... F7D7 clutch bearing

    Type ALP..F7D7 is a roller type freewheel, self-contained, sealed and bearing supported using two 160.. series bearings. Unit is not delivered oil lubricated.

    Available Shaft Diameter: 12-250mm

    Specification
    ModelALP...F7D7
    MaterailGCr15
    Inner Diameter12-250mm
    Outer diameter62-610mm
    Height90-868mm
    Torque capacity55-287500Nm
    Inner race overrunning speed2500-100r/min
    Outer race overrunning speed6000-620r/min
    ApplicationBackstop / Overrunning
    PackageCarton package / Wooden package
    Delivery time5-7 days
    Payment termsTT, L/C, D/P, D/A, Western Union, Paypal

    Catalogue of ALP...F7D7 backstop clutch for your choice

    ALP...F7D7 ALMP...F7D7 Backstop Clutch One Way Roller Clutch Bearing

    TypeSizeOverrunning speedWeight

    ALP...

    F7D7

    dH7KEETKNnimax1)namax2)dKH7DL1D6L6L8bsf
    [mm][Nm][min-1][min-1][mm][mm][mm][mm][mm][mm][mm][mm][mm][kg]
    122552500600012…2562429735901330.53
    1531221900600016…306852112401101830.84.4
    2031221600560016…30755711240114.517.530.84.6
    2542881400450020…40906013050137.517.5316.4
    3055001300410020…501006816060148202111
    3567251100380025…651107419075168192117
    4061025950340025…6512586190751781721.519
    4561050900320025…6513086190751781721.519
    5071750850280030…751509222590207252.51.531
    5582625720265035…90160104270100233.529.53247
    6082750680245035…90170114270100244303249
    70105750580215045…110190134340140312.538.532.590
    80118500480190055…1252101443801603403632.5107
    901213750380170065…140230158440180388503.53170
    1001420000350145075…160270182500200422.540.53.53230
    1201630000250125085….1803102025602204714943330
    150184375018098095…2004002466402505434744500
    2002297500120750125…250520326880320700.554.54.55965
    25028250000100620160…320610396116040086872551725

    ALMP..

    F7D7

    2542881100280020…40906013050127.517.5316.4
    3055881000250020…501006816060148202111
    356838900240025…651107419075168192117
