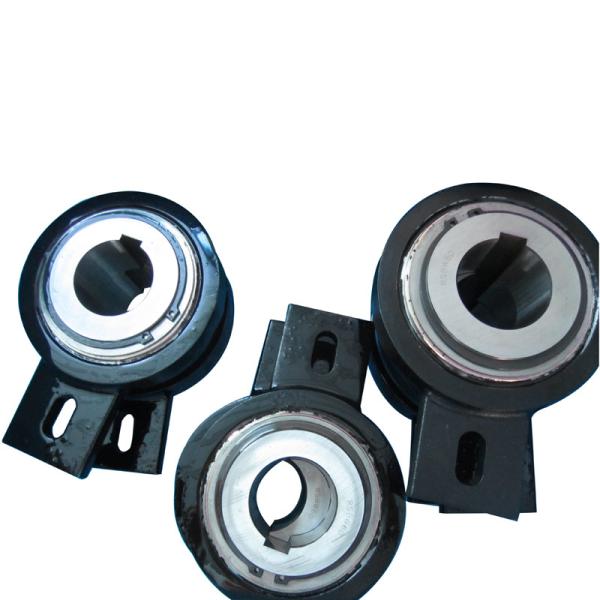

STIEBER AV series =C.T.S GV series

Catalogue of backstop one way clutch for your choice

Type	Size	Torque	Overrunning Speeds	DIMENSIONS									Weight
AV	dH7	TKN1)	nimax	D	D2	L1	L	B	N	E	bB11	f
	[mm]	[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	20	265	450	83	42	35	12	40	35	5	15	0.8	1.3
	25	365	450	83	42	35	12	40	35	5	15	0.8	1.3
	30	1200	320	118	60	54	15	40	35	8	15	1	3.5
	35	1200	320	118	60	54	15	40	35	8	15	1	3.4
	40	1200	320	118	60	54	15	40	35	8	15	1	3.3
	45	2150	280	155	90	54	20	80	47	10	18	1	5.5
	50	2150	280	155	90	54	20	80	47	10	18	1	5.4
	55	2150	280	155	90	54	20	80	47	10	18	1	5.3
	60	2150	280	155	90	54	20	80	47	10	18	1	5.2
	70	2150	280	155	90	54	20	80	47	10	18	1	5
	80	2900	200	190	110	64	20	80	40	10	20	1.5	8.7
	90*	7125	150	260	160	90	25	120	-	-	-	3	24.5
	100*	7125	150	260	160	90	25	120	-	-	-	3	23.5
	110*	7125	150	260	160	90	25	120	-	-	-	3	22.5
	120*	11000	130	300	180	110	30	140	-	-	-	3	42

NotesTmax= 2 × TKN
» Refer to Selection page 10 to 13
Keyway to DIN 6885.1
*) 2 Keyways 120° offset
» Refer to mounting and maintenance instructions

Changzhou Lisongtai Industrial Motion Technology Co., Ltd with more than 10 years of experience, Our main products are freewheels ,backstops, one-way clutches, overrunning clutches, cam clutches, related products such as electromagnetic clutches, cam follower bearing,needle roller bearings, and customized serive .Our products cover more than 5 categories, over 100 different patterns and more than thousands sizes available.

Key market including food production and manufacturing, conveyor and other conveying devices, aerospace, military ships, printing and packaging, electric tools, automation machinery, ports and docks, and other scenarios. Our product is exported to various parts of the country.

What are we?

We are Changzhou Lisongtai Industrial Motion Technology Co.,LtD, it was founded in 2019, covered the aera of 4000 sq. M. Our factory was located in the economically developed coastal city-industrial district-Wujin Changzhou city of Jiangsu province. Here transportation is convenient, It will just take one hour to Shanghai by train.

We also have Changzhou Global bearing trading company, integration of industry and trade.

What the main product are produced?

One way bearings, one way clutch, overrunning clutch, backstops, cam clutch, needle roller bearing, Supporting roller and curve bearings, Cylindrical roller bearings. Thrust ball bearings with falt seat. We have large stocks, and we also accpect producing for non-standard product, Customers' drawing or samples.

What is our advantage?

Product: In 1999, our boss as a engineer, started to develop and design one way clutch bearings when he worked in a big bearing factory. Untill now, We have successes to develop BB series, MZ series, TFS series, NSS series RSBW series, which to be confirmed reach in a high quality level can compared with TSUBAKI brand from Janpan.

GFR series, DC series, ASNU series, NFR series, GFK series, NF series, AE series, AA series, ect, which to be confirmed reach in a high quality level can compared with STIEBER brand from German.

FE series, FP series, FND series, FKN series one way clutch bearing, which to be confirmed reach a high quality level can compared with GMN brand from Germany.

To continue to offer our customers the highest standard of service in our Industry. It is our intention to remain at the forefront of bearing supply and design and to continue our development into new bearing.

Factory equipment: The company owns the most advanced CNC automatic production line, automatic assembly line, and a variedy of testing equipment. Bearings we manufactured are all low noise, low vibration, low friction, high precision, high sealed, high turning speed and long life.

Quanlity control: All our products are sent out before several times inspection. We also supply detailed drawings and offer whenever necessary.

What's the application?

Widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc

Where our products have been saled?

Our products all over the world play an important role

In Germany, Britain, the Netherlands, Spain, Italy,

In Indian, Indonesia, the Philippines, Thailand,

In Iran, Dubai

In Mexico,

In the United States

"Quality and Service" must be your main concerns which we have put into practice, please browse our product category and let us know your inquiries. Our aim is to supply our customers meet with good quality and the best competitive prices. With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
