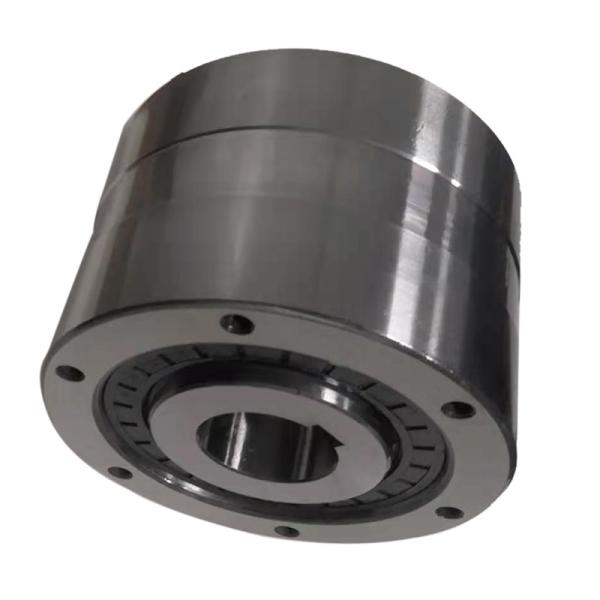

    Sprag coupling Freewheel FSO600-50 overrunning clutch

    Ask Lasest Price
    Brand Name : LST
    Model Number : FSO600-50
    Certification : SGS,ISO9001:2008
    Price : USD120.00-150.00/pcs
    Supply Ability : 10000pcs/per month
    • Product Details
    • Company Profile

    Sprag coupling Freewheel FSO600-50 overrunning clutch

    Product Description
    Product Model: FSO(HPI)

    Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
    Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design with a ?full sprag complement? that gives a very high torque for a given d
    iameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals. Type HPI is specially designed for high speed indexing applications.One Way Clutch (FSO HPI))

    FSO/HPI300-700

    TypeSizeOverrunning speedsLubricantWeighttorqueDrag







    FSO
    FSO-GR
    HPI
    FSOFSO-GRdH7-bxhd4)ABCEFGzJKLfFSOFSO..GRHPITR
    TKN1)nmax2)nmax3)min-max-0.05
    [Nm][min-1][min-1][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][ml][ml][ml][kg][Ncm]
    3003793000/9003600/90015-5x512... 1963.576.260.451.628.5866.674M813M60.8710141.618
    4004072800/8503600/85018-6x612... 2269.8588.968.071.630734M813M60.81020202.727
    50016212500/8003000/80030-8x719... 3388.9107.9585.731.645924M816M61.52235354.831
    40-12x8
    60031052200/7502400/75045-14x924... 5795.25136.52592.21.663.5120.66M816M61.65284848.662
    50-14x6
    50-14x9
    70069001600/4502000/45060-18x1148... 82127180.975123.851.690158.758*M10*20M61.616828028019156
    65-18x11
    70-20x12101,65)

    FSO/HPI750-1027
    TypeTorque
    capacity
    Overrunning speeddH7ABCEFGkfWegihtDrag Torque
    75096601800/65075-20x12152.4222.25149.21.6107.74177.8251.6385.08
    80-22x14
    85-22x14
    80-22x14
    800179401500/52590-25x14152.4254149.21.6139.7227251.6467.12
    100-28x16
    110-28x16
    100-28x16
    900244081350/500110-28x16161.9304.8158.71.6161.92247.65321.6718.47
    120-32x18
    130-32x18
    130-32x18
    102736612700/375150-36x20168.3381165.13.2228.6298.45323.211313.56
    175-45x25
    1) T max = 2 × T KN
    2) Inner race/outer raceg
    3) Inner race/outer race labyrinth seal
    4) Inch bore available on request
    5) Only for oversize bore
    Size 600 > 50 mm
    Size 700 > 75 mm
    *) 6 holes equally spaced at 60° plus
    2 extra-holes at 180°

    MOUNTING EXAMPLE
    One Way Clutch for Indexing Applications Fso300-700
    FSO 300-1027 /HPI300-1027 Self-contained sprag clutch.

    Model Number:
    FSO 300, FSO 400, FSO 500, FSO 600, FSO 700, FSO 750, FSO 800, FSO 900, FSO 1027, HPI 300, HPI 400, HPI 500, HPI 600, HPI 700, HPI 750, HPI 800, HPI 900, HPI 1027

    Fso 300-1027 /Hpi300-1027 Self-Contained Sprag Clutch
    Part No.Dimension (mm)GMass
    FSOHPIBDCD1ESn-mnumbers(kg)
    FSO 300HPI 30060.4576.2/76.1563.528.5866.67-1.58×45°41.6
    FSO 400HPI 40068.2688.9/88.8569.8530.1573.02-1.58×45°42.7
    FSO 500HPI 50085.72107.95/107.988.944.4592.07-1.58×45°44.8
    FSO 600HPI 60092.07136.53/136.4795.2563.50/69.09120.65-1.58×45°68.6
    FSO 700HPI 700123.8180.97/180.9212790.42/101.6158.75-1.58×45°819
    FSO 750HPI 750149.2222.25/222.2152.4107.95177.831.751.58×45°838
    FSO 800HPI 800149.2254/253.95152.4139.7227.0131.751.58×45°846
    FSO 900HPI 900158.8304.8/304.72161.9161.92247.6534.921.58×45°1071
    FSO 1027HPI 1027165.1381/380.92168.3228.6298.4534.923.17×45°12113

    Company Information



    Workshop Manufacture Processing


    Testing equipment



    Main products


    1. One Way Bearing

    1. Overrunning clutch

    for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

    2. Indexing clutch

    which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

    3. Backstop

    to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake


    2.Needle roller bearings


    Applications:


    Backstop

    A Backstop application is where rotation

    is allowed in one direction and stopped in

    the opposite.

    Application examples:

    · Conveyor equipment

    · Mixers

    · High voltage switches

    · Furniture industry

    · Turnstiles and revolving doors

    · Geared motors

    · Winches

    · Elevators

    · Cranes

    · Strap/belt tighteners

    · Bucket conveyors

    · Belt reversing locks

    · Fans

    · Automatic doors (subway)

    · Fire damper flaps

    · Aviation technology

    · Roller plants

    · Summer skiing


    Indexing clutch

    A repeated drive then idle motion will

    be transferred to the driven side, step by

    step, as rotary motion in one direction (the

    clamping direction).


    Application examples:

    ·Paper processing (advance)

    · Seeding machines

    · Staplers (staples)

    · Conveyor belts (drive)

    · Ratchets

    · Ratchet wrenches

    · Roller advance

    · Installation tools

    · Automation technology


    Overrunning clutch

    If the speed of the driven side exceeds the

    speed of the driving side,the freewheel-clutch disengages the driving and driven sides by switching from torque transimit to idle.

    Application examples:

    ·Copier machines

    · Printing machines

    · Conveyor equipment

    · Transport equipment (speed matching)

    · Starters for combustion engines

    · Ergometers

    · E-bikes

    · Bicycle hubs

    · Starters

    · Emergency power aggregates

    · Generators

    · Hybrid applications (E-mobility)

    · Palletizing and storage systems

    · Model helicopters

    · Hand operated sirens

    · Roller coasters

    · Washing systems

    · Continuous ovens

    · Compressors

    · Compensating gearboxes

    · Gas turbine drives

    · Pump drives

    · Belt drives

    · Wheelchairs
