    Powder metallurgy one way clutch bearing OWC812-5.0GXLZ Miniature one way bearing

    Ask Lasest Price
    Model Number : OWC812-5.0GXLZ
    Certification : ISO9001
    Price : US0.5-1.0/pcs
    • Product Details
    • Company Profile

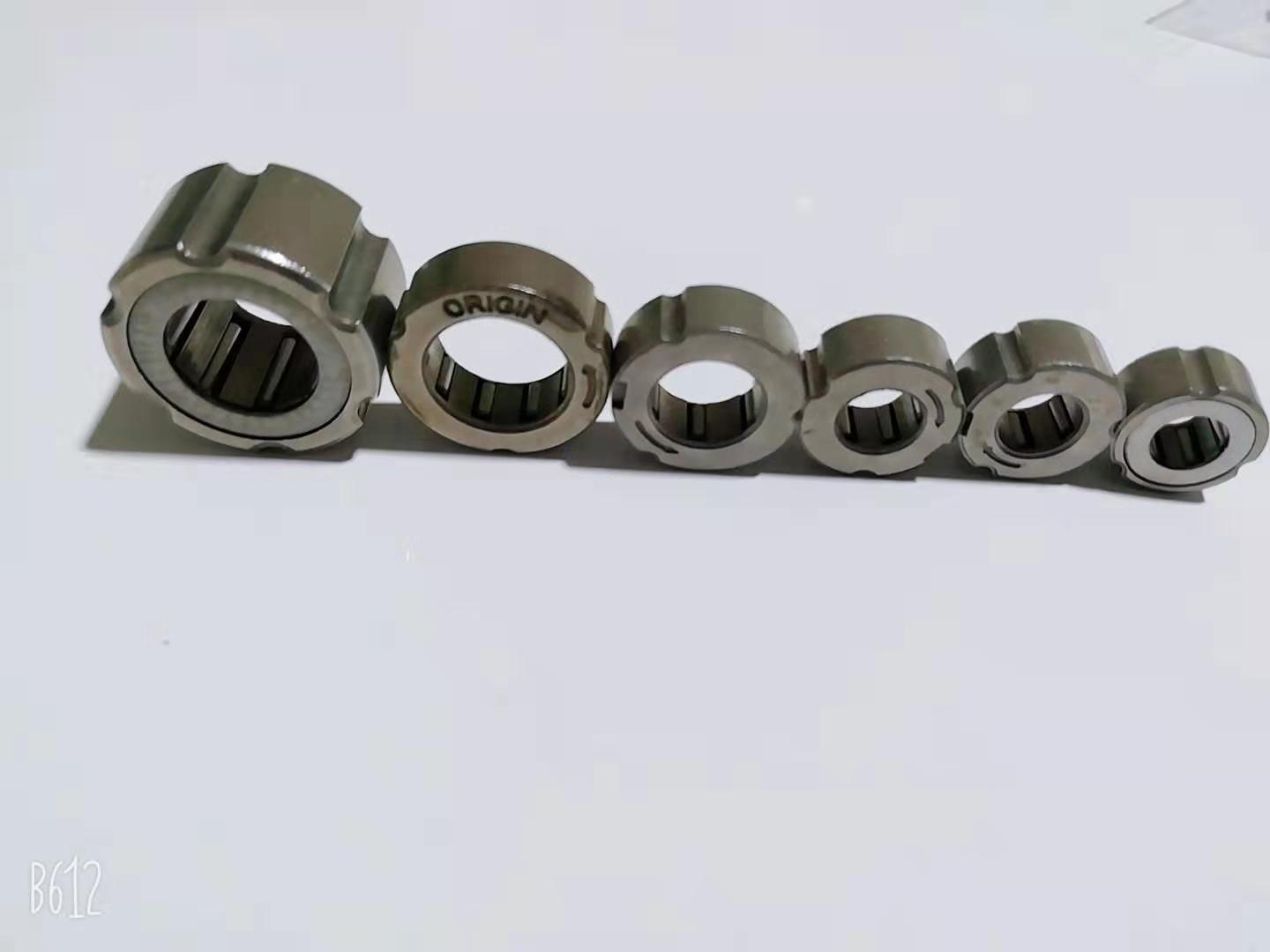

    Powder metallurgy one way clutch bearing OWC812-5.0GXLZ Miniature one way bearing


    Introduction:

    Powder metallurgy one-way bearing adopts the technology of forming and sintering to make metal powder (or mixture of metal powder and non-metal powder) into products. Based on the study of the characteristics of the powder and the process change characteristics, the corresponding technological process is adopted to change the shape, performance and their organizational structure of the powder to become the bearing products that adapt to different needs.

    Features of Powder Metallurgy Bearings
    OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,andmake the structure more compact as well as higher performance.
    make the structure more compact as well as higher performance.

    Material of Powder Metallurgy Bearings
    Outer ring: is made by sintered metal F4 Powder Metallurgy
    Spring: is made by stainless steel

    Needle:Gcr15


    Product name


    Powder Metallurgy one way Bearings
    Material

    SMF 5030,F4 Powder Metallurgy

    Application


    Fishing machinery, Clothes hanger,ATM, SMT,Counting machine, Printer, copier, etc

    Operating Characteristics


    High temperature

    Delivery time


    2-4 days for the sample, 7 days for big order

    Catalogue of Powder Metallurgy Bearings for your choice

    GXRZ series are clockwise rotation
    GXLZ series are anticlockwise rotation

    ModelWeightDIMENSION (mm)Driving Torque
    gInner Dia.Outer Dia.Height( Nm )
    OWC406GXRZ1.6486.02.5
    OWC406GXRZ
    OWC408GXRZ1.8488.03.1
    OWC408GXLZ
    OWC410GXRZ1.84105.42.8
    OWC410GXLZ
    OWC511GXRZ25115.43.5
    OWC511GXLZ
    OWC610GXRZ2.38610.28.04.6
    OWC610GXLZ
    OWC612GXRZ2.36125.45.2
    OWC612GXLZ
    OWC612GXRZ-8.42.36128.45.2
    OWC612GXLZ-8.4
    OWC812GXRZ2.8812

    5.0

    5.8
    OWC812GXLZ
    OWC814GXRZ2.88145.46.1
    OWC814GXLZ
    OWC814GXRZ-8.42.8814.38.46.1
    OWC814GXLZ-8.4
    OWC1016GXRZ310165.49.5
    OWC1016GXLZ
    OWC1019GXRZ8.5101911.019.8
    OWC1019GXLZ
    OWC17351222.5173512.078
    OWC17351625.5173516.095
    OWC20321623203216.0108
