Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings

    Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers

    Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers
    • Buy cheap Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings from wholesalers

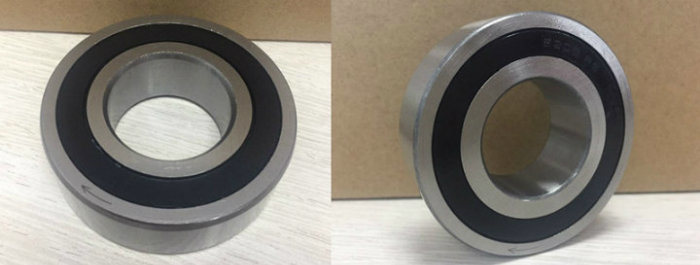

    Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings

    Ask Lasest Price
    Brand Name : R&B
    Model Number : CSK17PP
    Certification : SGS
    Price : USD2.30-3.00/pcs
    Supply Ability : 100000pcs/per month
    • Product Details
    • Company Profile

    Changzhou high quality CSK8-40 with P/PP or 2RS one sprag way clutch bearings


    SPECIFICATIONS
    ModelCSK17PP
    Inner diameter17mm
    Outer diameter40mm
    Thickness12mm
    Torque capacity30Nm
    Max Torque65Nm
    Max outer race overrunning speed7350r/min
    Weight0.07kg
    Delivery time5-7days,stock
    Payment TermsTT,D/P,D/A,Western Union, Paypal,Payoneer

    One Way Clutch Indexing Clutch (CSK CSK-2RS)
    One Way Clutch Indexing Clutch Csk Csk-2RS

    Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
    All the CSK versions are equipped with "formchromed" sprags. This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if
    using the press fit as specified. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.


    One Way Clutch Indexing Clutch Csk Csk-2RS
    TypeSizeBearing seriesBearing loadsWeightDragtorque
    dynamicstatic





    CSK (KK)
    dTKN1)nmaxDLCC0TR
    [mm][Nm][min-1][mm][mm][kN][kN][kg][Ncm]
    8*-2.5150002293.280.860.0150.5
    1262019.31000032106.12.770.040.7
    15620217840035117.43.420.060.9
    17620330735040127.93.80.071.1
    20620450600047149.44.460.111.3
    256205855200521510.75.460.142
    3062061384200621611.76.450.214.4
    3562071753600721712.67.280.35.8
    40-3253000802215.5412.250.57




    CSK..2RS
    8**2.5150002293.280.860.0150.8
    12-9.31000032146.12.770.053
    1517840035167.43.420.074
    1730735040177.93.80.095.6
    2050600047199.44.460.1456
    25855200522010.75.460.1756
    301384200622111.76.450.277.5
    351753600722212.67.280.48.2
    40-3253000802715.5412.250.610


    One Way Clutch Indexing Clutch Csk Csk-2RS


    Company Information


    Changzhou RenBen Bearing Factory(Changzhou Global Bearing Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, needle roller bearings,one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.


    Workshop

    Manufacture Processing

    Testing equipment



    Main products


    1. One Way Bearing

    1. Overrunning clutch

    for multiple-machine drives or to separate the iner-tia of masses of a driven machine from the driving machine after it has been switched off.

    2. Indexing clutch

    which turns a shaft step by step, thus achieving indexed material feed or a variable speed.

    3. Backstop

    to prevent a machine shaft turning backwards. In this case the overrunning clutch acts as a brake


    2.Needle roller bearings

    Applications:

    Our advanges:

    Our package:

    R&B Certifications:

    Transport ways:

    Easy communication ways:



    FAQ

    A:Will you send me free sample?

    B: It is highly encouraged to ask for the samples for quality check.


    A:Do you like to serve the client only with small orders?

    B:We enjoy to grow up together with all our clients whatever big or small.And WIN-WIN is our objective.


    A:Could you accept OEM and customize?
    B:YES, we can customize for you according to sample or drawing, but, pls provide us technical data, such as dimension and mark.


    A:Is it your company is factory or Trade Company?
    B:We have our own factory; our type is factory + trade.


    A:How to maintain my bearings?
    B:a. Soak your bearings in mineral spririts or paint thinner to remove any grease or particulates;
    b. Blowbearing out with compressed air;
    c.place a light drop of oil on the bearing;
    d.If the bearings feel rough repeat, give the bearing a spin.


    A:Could you supply door to door service?
    B:Yes, by air and by express (DHL, FEDEX, TNT, ARAMEX,EMS, SF)
